Compact Angular Gearbox
SN 26 H
We present our latest innovation: the SN 26 H angular gearbox from Ruhrgetriebe.
With a centre distance of 31 mm and its robust worm gear technology, this gearbox offers maximum precision and reliability.
Thanks to its durable aluminium housing, maintenance-free lifetime lubrication and an operating time of 2,000 hours (S1 operation), the SN 26 H is the ideal companion for demanding applications.
It is characterised by its flexibility, as both a single-sided and double-sided shaft design is possible.
With various ratios from 2.5:1 to 167:1, the gearbox covers a wide range of requirements and ensures efficient power transmission with its efficiency of up to 79 %.
Thanks to the hollow shaft output shaft and the individual motor mounting options, it offers flexible application possibilities. Whether in the flange or foot-mounted version – the gearbox adapts perfectly to your requirements.
Technical highlights
–Long service life
2,000 hours (S1 operation)
–Housing
Robust aluminium, can be painted in the colour of your choice
–Lubrication
Maintenance-free, lifetime lubrication
–Sizes

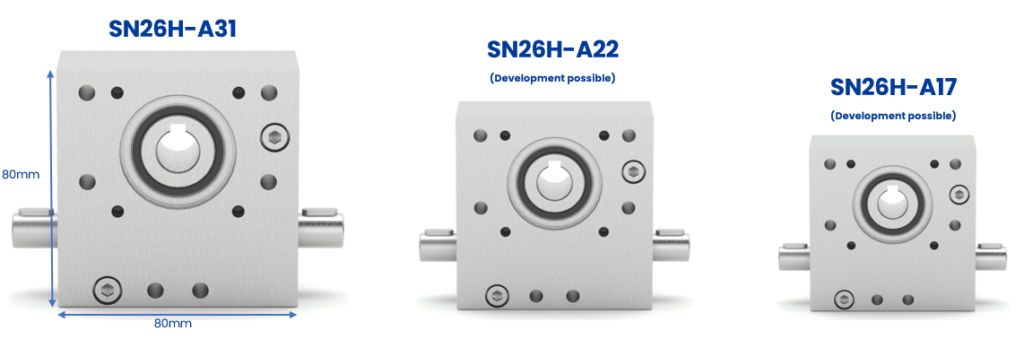

With centre distance A31 (optional: A17, A33, A40, A53, A65)
–Ratios
From 2.5:1 to 167:1
-Efficiency level
Up to 79 %
Please get in touch for any enquiries.
