Freewheels and One Way Clutches
How they work
Freewheels, sprags, one way clutches, backstops, overrun clutches, whatever you call them they function in one of three ways:- to stop a shaft running in reverse, to allow a shaft to run faster, or to index a shaft.
The Combidrive team have worked with STIEBER companies since 1968. Freewheels from Stieber, GMN, Formsprag, Tsubaki and Ringspann may be employed as: Overrunning clutches, Indexing Clutches or Backstops.
Some of the more common applications include:
- Packaging machines
- Conveyors
- Two speed drives
- Press feeds
- Exercise machines
- Turnstiles
- Automatic transmissions
- Agricultural machinery
- Hybrid vehicles

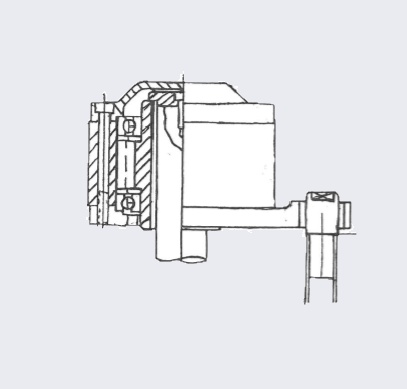

Geared Motor
Freewheel prevents run back through wrong connection of motor.
Inclined Conveyor
Freewheels prevents run back through power / transmission failure.
Packaging Machine
Freewheel holds flap in position caused by obstruction. Must be reset though 360 degrees by operator after obstruction is cleared.
Standby Drive
Electrical power failure allows petrol engine to drive without being driven over when electric motor is normally driving.
CSK
Available in bore sizes:
8-40mm
Combined freewheel and ball race. Dimensioned to metric series 62. Installation by press fit or Loctite. Greased and shielded.
CSK… 2RS
Available in bore sizes:
8-40mm
Combined freewheel and ball race. Bore and Od dimensioned to metric series 62. Width increase to allow for lip sealing. Installation by press fit or loctite.
CSK.. P
Available in bore sizes:
8-40mm
CSK series but with shallow keyway in bore, facilitating assembly.
CSK.. PP
Available in bore sizes:
8-40mm
CSK series but with shallow keyway in both bore and outer ring, facilitating assembly.
AS
Available in bore sizes:
6-80mm
Dimensioned to metric bearing series 62 with keyway in bore. Requiring bearing support alongside and lubricant.
ASNU
Available in bore sizes:
8-200mm
Dimensioned to metric bearing series 63 with keyway in bore and 'dogs' in outer ring. Requiring bearing support alongside and lubricant.
DC
Available in bore sizes:
22,22-123,881mm
Cage guided sprag assembly only. Prepared to operate between case hardened inner and outer surfaces. Requiring bearing support alongside and lubricant.
